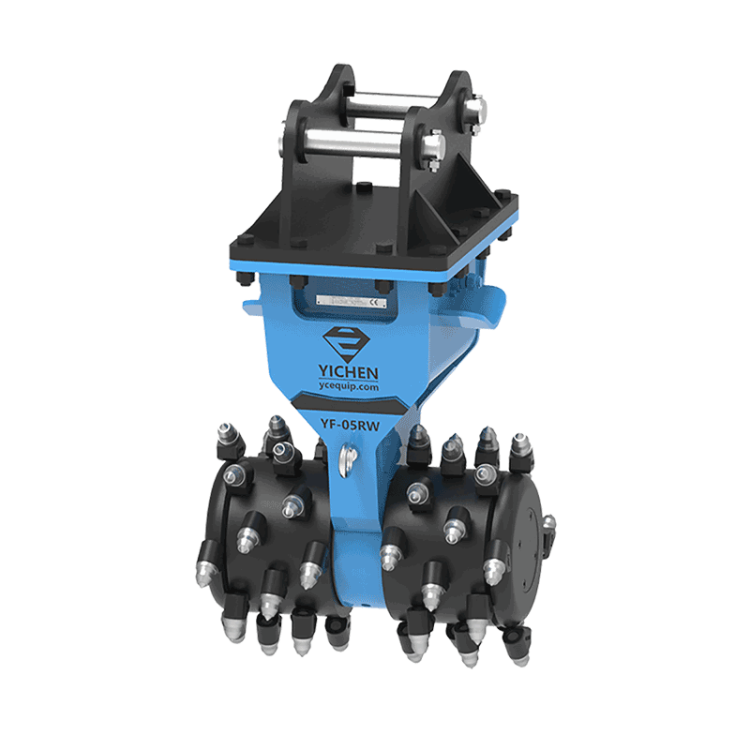

YF-05RW

Transverse Drum Cutter for 2.5-6t Excavator

YF-05RW Yichen® Transverse Drum Cutter for 2.5-6t Excavator. A small cutter has a diameter of 390 mm and grinds with extreme precision.

Yichen is a professional drum cutter supplier. The Transverse Drum Cutter for 2.5-6t Excavator YF-05RW is the smallest horizontal drum cutter in the YICHEN product line. It weighs only 215 kgs and can be installed on mini and midi excavators from 2.5 to 6 ton. Its drum can be replaced on site in less than an hour, without the need to take the unit to a specialized workshop.

Technical Parameter

YF-05RW Transverse Drum Cutter
Item Parameters
Excavator 2.5-6 ton
Max Power Output 22 kW
Max Flow 65 L/min
Recommended Flow 40-60 LPM
Pressure ≤315 bar
Output Torque 3780 Nm@315bar
Output Shaft Speed 80 RPM@60LPM
Cutter Bit 56 pcs
Weight 215 kgs
Note: If oil specification is below 46 centistokes at 40℃(ISO HV46) the performance must be down rated. Please contact YICHEN for further information.

Feature

  • YF-05RW Yichen® Transverse Drum Cutter for 2.5-6t Excavator. The structure is simple, easy to use, and can be installed on any hydraulic excavator with oil.
  • Low vibration, low noise, can effectively replace blasting construction in areas with vibration or noise restrictions, and can well protect the environment.
  • Precise control of construction can quickly and accurately trim the contour of the structure.
  • The milled material has a small and uniform particle size and can be directly used as backfill.
  • The working angle can realize the 360°rotation of the drum.
  • The maintenance is convenient, no grease and nitrogen filling are required, and there are no special requirements for the maintenance of the excavator.

Applications

  • Tunnels and roadways: excavation and treatment of walls, roofs, corners, contours, trenches, etc.;
  • Road engineering: cutting or excavation of concrete structures, side trenches, slopes and auxiliary facilities, cleaning of damaged cement or asphalt pavements, etc.;
  • Water conservancy project: concrete structure treatment, riverbed cleaning, cleaning or dismantling of damaged structures, etc.;
  • Municipal engineering: excavation or treatment of pipeline trenches, foundations, structures, cleaning or dismantling of damaged municipal facilities, etc.;
  • Open-pit coal mining: excavation and mining of coal mines and mines, etc.

Tunneling

Utility Work

Roadworks

Mining

Excavation

Structure Shaping
